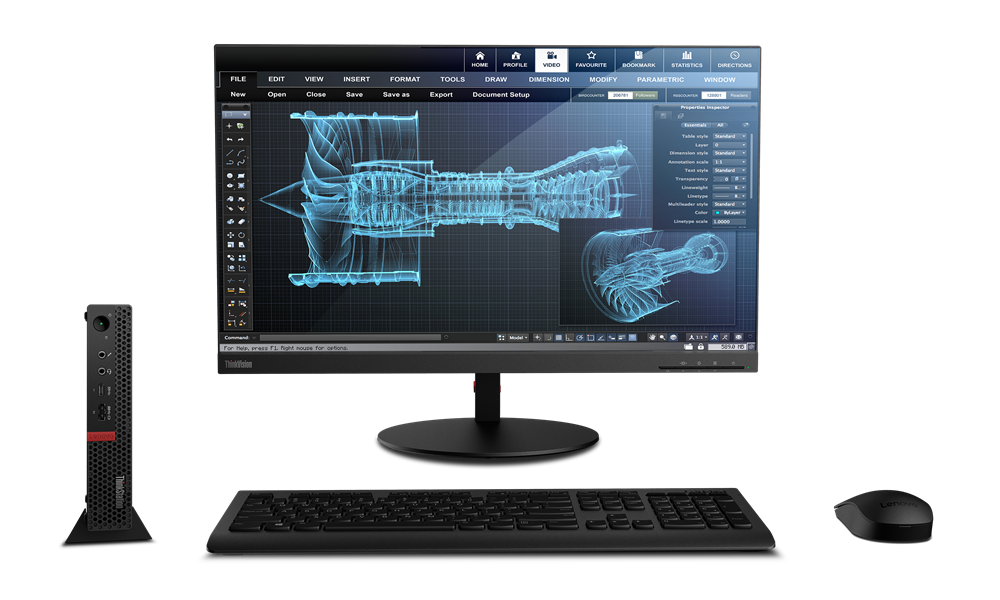

ThinkStation P330 Tiny-i7-16GB-512SSD
Descripción
| PERFORMANCE | |
| Processor | Intel Core i7-9700T (8C / 8T, 2.0 / 4.3GHz, 12MB) |
| Processor Sockets | 1x FCLGA1151 |
| Integrated Graphics | Intel UHD Graphics 630 |
| Discrete Graphics | NVIDIA Quadro P1000 4GB |
| Chipset | Intel Q370 |
| Memory | 1x 16GB SO-DIMM DDR4-2666 Non-ECC |
| Memory Slots | Two DDR4 SO-DIMM slots, dual-channel capable |
| Max Memory | Up to 64GB |
| M.2 SSD Drive | 1x 512GB SSD M.2 2242 PCIe NVMe |
| Internal Disk Drive | None |
| Optane Memory | None |
| Storage Support | Up to 1x 2.5″ HDD + 2x M.2 SSD • 2.5″ HDD up to 2TB • M.2 SSD up to 1TB each |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC233 codec |
| Power Supply | 135W 88% Adapter |
| DESIGN | |
| Keyboard | USB Traditional Keyboard, Black, Spanish (LA) |
| Mouse | USB Calliope Mouse |
| Expansion Slots | One PCIe 3.0 x16 or x4 slot, low-profile, via riser card |
| M.2 Slots | Uo to 2x M.2 SSD via onboard slots |
| Bays | 1x 2.5″ disk bay |
| Adapter Cage | None |
| Dust Filter | None |
| Toolless Chassis Screw | Toolless Chassis Screw |
| Mounting | VESA Mount |
| Stand | None |
| Dimensions (WxDxH) | 37 x 183 x 179 mm (1.5 x 7.2 x 7.0 inches) |
| Weight | 1.32kg (2.91lbs) |
| CONNECTIVITY | |
| Onboard Ethernet | 1x GbE RJ-45 |
| Optional Ethernet | None |
| WLAN + Bluetooth | Intel 9560 11ac, 2×2 + BT5.0 |
| Front Ports | 1x headphone / microphone combo jack (3.5mm) 1x USB-C 3.1 Gen 1 1x microphone (3.5mm) 1x USB 3.1 Gen 1 (Always On and fast charge) |
| Rear Ports | 2x USB 3.1 Gen 2 1x HDMI 1x DisplayPort 2x USB 3.1 Gen 1 1x Ethernet (RJ-45) |
| Optional Rear Ports (configured) | None |
| SECURITY & PRIVACY | |
| Security Chip | Discrete TPM 1.2, TCG certified |
| Cable Lock | None |
| MANAGEABILITY | |
| System Management | Intel vPro, DASH |
| SERVICE | |
| Base Warranty | 3-year, Onsite |
| Included Upgrade | None |
| CERTIFICATIONS | |
| Case Color | Black |
| Green Certifications | GREENGUARD EPEAT Silver RoHS compliant ENERGY STAR 7.0 |
| ISV Certifications | Please visit www.thinkworkstations.com/isv-certifications/ |
| TUV Low Noise | None |
| Mil-Spec Test | MIL-STD-810G military test passed |
| SOFTWARE | |
| Operating System | Windows 10 Pro 64, Spanish |
| Bundled Software | None |
| TopSeller | No |
| Announce Date | 2020-01-23 |
| EAN / UPC / JAN | 195042378962 |
| End of Support | 2026-08-31 |
| Recommended Services | |
| Best | 5Y Premier Support Upgrade from 3Y Onsite (5WS0T36135) |
| Better | 4Y Premier Support Upgrade from 3Y Onsite (5WS0T36136) |
| Good | 3Y Premier Support Upgrade from 3Y Onsite (5WS0U26646) |
